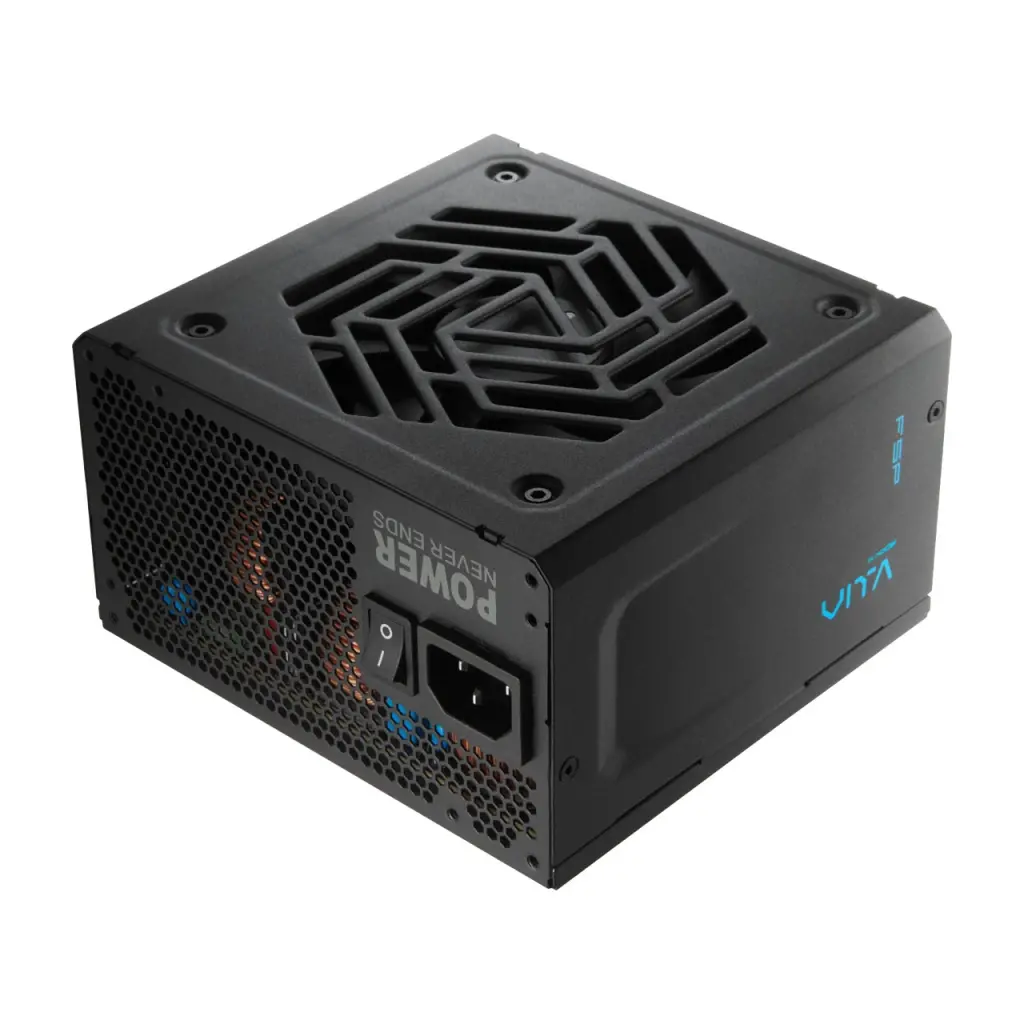

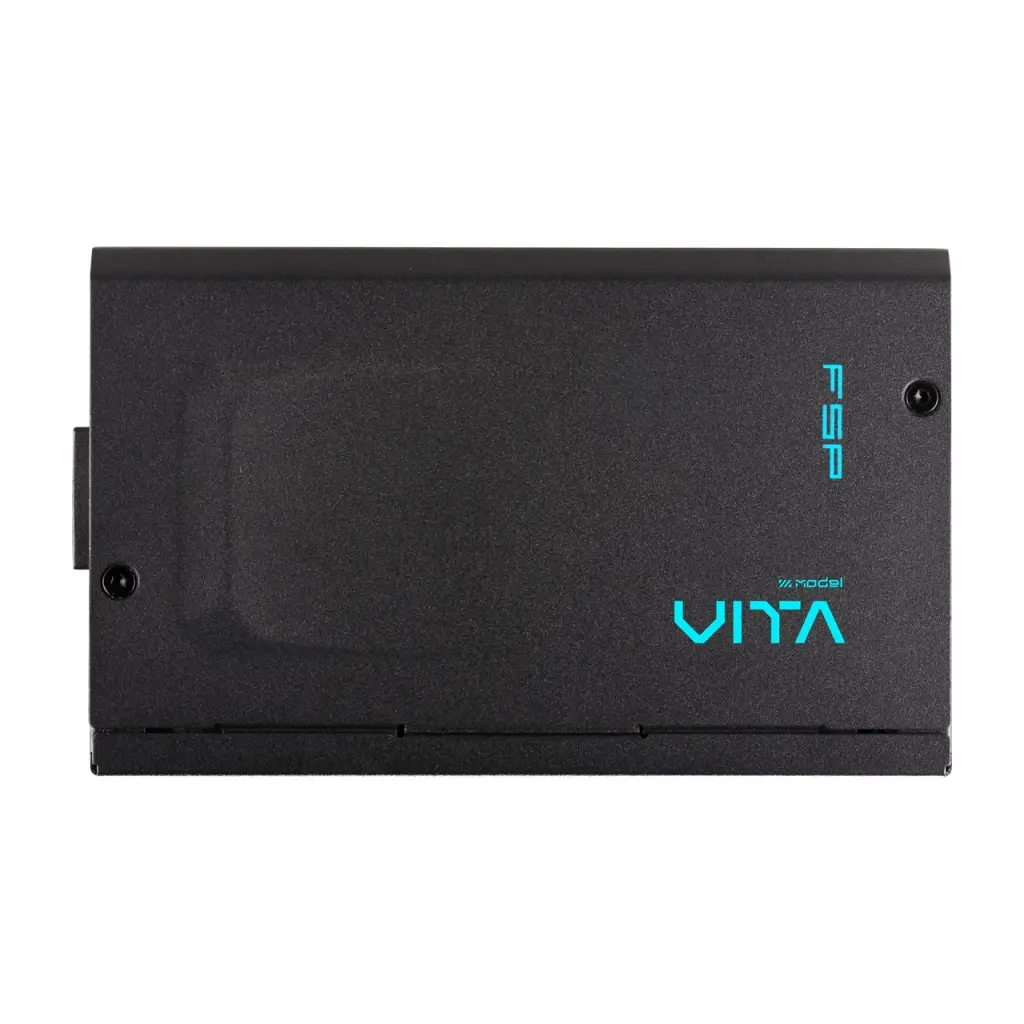

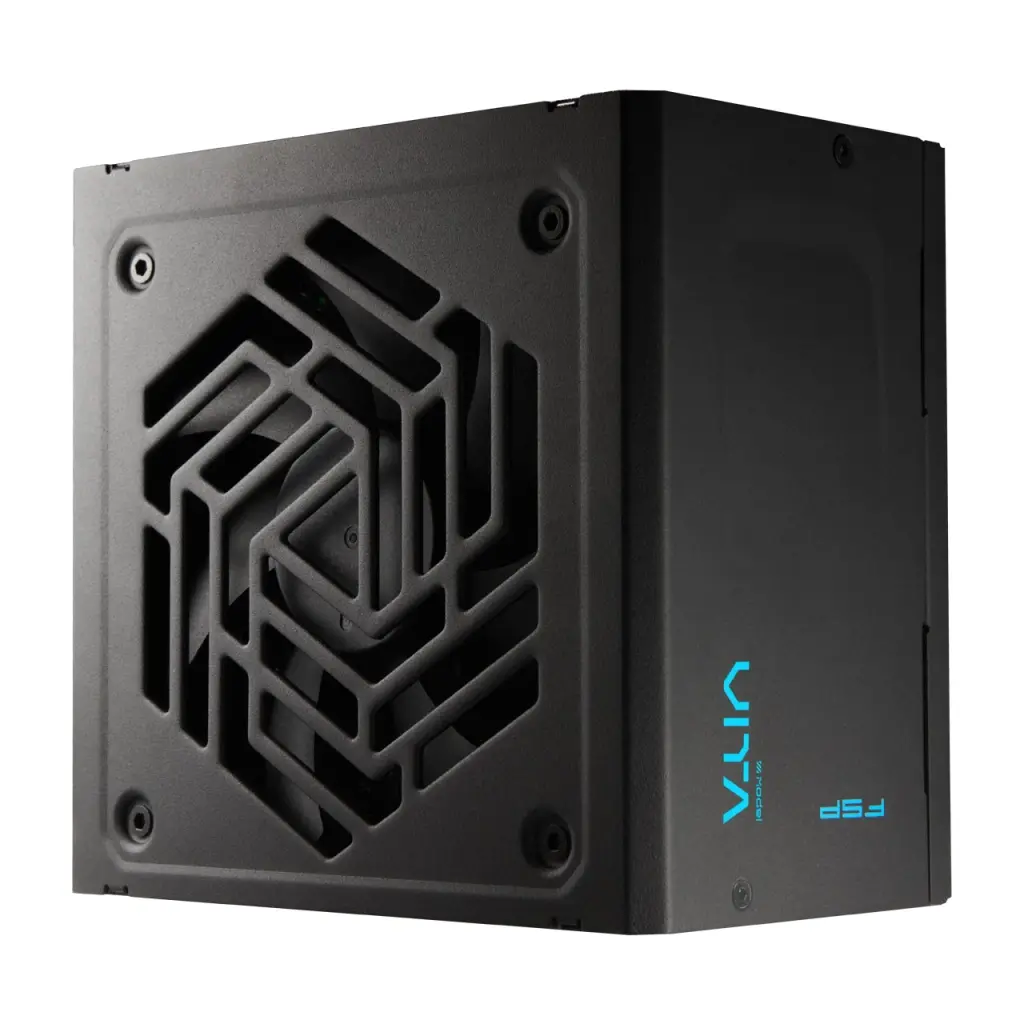

FSP VITA 850BD, 850W, 80+ BRONZ, Aktif PFC, GAMING, ATX, Power Supply (PSU)

Ürün Kodu: MİR142380

Marka: FSP

Stok: 10

8.880,79 TL

Havale/EFT ile 8.614,36 TL

740,07 TL 'den başlayan taksitlerle

Hızlı Gönderi

Güvenli Alışveriş

İade ve Değişim

Fan Ebatı	:	12 CM
Güç	:	850 W
PFC	:	AKTİF PFC
Power Form	:	ATX
Verimlilik	:	80 PLUS

VITA BD 850W

Efficiency ≧ 88% at typical load
80 PLUS ® 230V EU bronze certified
Hold up time ≥ 12ms at 100% load
Premium, all-black cables for easier cable routing

Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

VITA BD 850W

Specifications
FAQ

Complies with Intel® Power Design Guide ATX 3.1

VITA BD series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.

+5V & 3.3V DC to DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

High Efficiency in Bronze-certified

Certified by world-class organizations 80 PLUS ® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.

Powerful Single +12V Rail

Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.

Premium, Black Flat Cables

Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.

Premium Bulk Capacitor

The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Stay Cool, Stay Soft

Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.

OVP

Over Voltage Protection

OCP

Over Current Protection

OPP

Over Power Protection

OTP

Over Temperature Protection

SCP

Short Circuit Protection

UVP

Under Voltage Protection

SIP

Surge and Inrush Protection

NLO

No-load Operation

Fortress-level Protection

Our comprehensive circuit shields your valuable components from harm.

MB 24 PIN

1 cable

1 connector

550 mm

CPU 8 PIN
/ CPU 4+4 PIN

1 cable

8 PIN x1 / 4+4 PIN x1

755 mm

PCIe 6+2 PIN

2 cable

4 connector

655 mm

PCIe 12V-2x6

1 cable

1 connector

650 mm

SATA

1 cable

4 connector

965 mm

MOLEX / SATA

1 cable

MOLEX x2

SATA x2

965 mm

Performance

AC/DC

AC Input	200-240V~ 6A 50-60Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	70.83A	0.3A	2.5A
Max Combined Power	100W		850W	3.6W	12.5W
Total Power	850W

Specifications

Model	VITA-850BD
Rated Output Power	850W
Form Factor	ATX12V V3.1
80 PLUS Certification	230V EU Bronze
Input Voltage	200-240V
Input Current	6A
Input Frequency	50-60Hz
PFC	Active ≧ 0.9
Efficiency(at typical load)	≥88% at typical load
Fan Type	Sleeve Bearing, 120mm
Dimensions(L x W x H)	140×150×86 mm
Operation Temp.	40°C
Protection	OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
Warranty	5 Years
